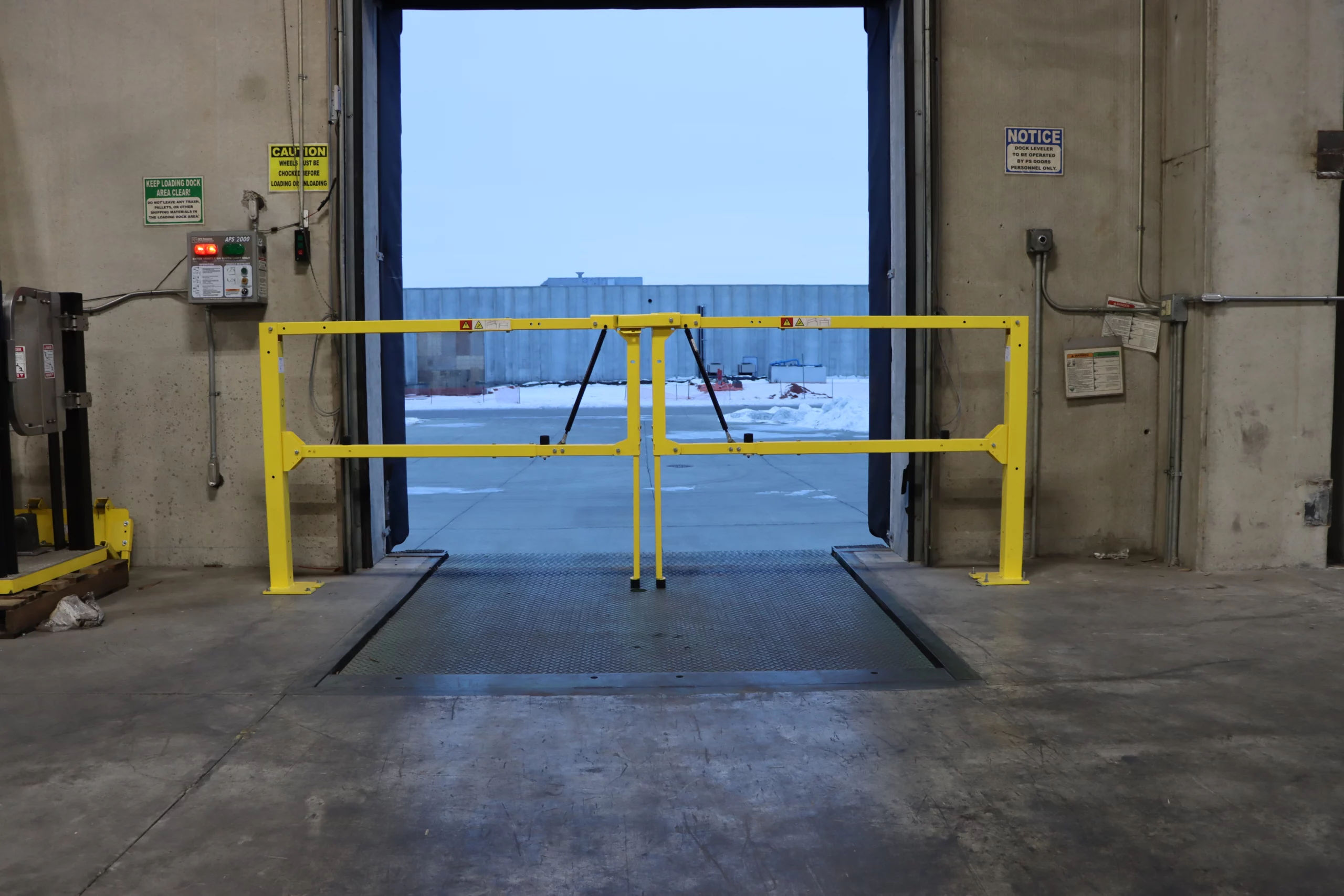

EdgeSafe® Smart Gate (Double)


Improve employee and customer safety the smart way by utilizing the EdgeSafe® Smart Gate from PS Safety Access™ in your facility. With flexible sizing to fit virtually any situation, our Smart Gate is ideal for a variety of applications, including: loading docks, fall protection/railing openings for hoisting, machine guarding, equipment protection, ground-level traffic control, perimeter protection, and so much more. The Double gates are well suited for low headroom and wide areas.

Also available in single configurations and with an optional add-on for an electric operator.  An optional toeboard is available with model ESGDBL-120-PCY.

NOTE: EdgeSafe Smart Gate Double models 192-PCY, 240-PCY and 288-PCY are not approved for fall protection

SKU: N/A Category:


  • Safety That Pays – The EdgeSafe Smart Gate keeps your team safe while keeping your facility running efficiently
  • Extended Configurations – Available in both Single (48″ to 156″) and Double (108″ to 324″) gate configurations to accommodate a variety of applications and opening sizes ranging from typical to extra large – the Double, for example, is well suited for low headroom and wide areas
  • Flexible Sizing – Gate systems adjustable to fit a variety of clear opening widths
  • Easy Operation – Counterbalanced design makes it easy for one person to operate the gate smoothly with just one hand
  • No Slamming – A unique dampening system keeps the gate from closing hard, and the damper is specially mounted high up to prevent it from becoming damaged
  • Lifts Out Of The Way – The gate lifts vertically 90 degrees (without pinch points) to ensure plenty of clearance
  • Built To Last – Heavy-gauge steel and a powder coat yellow finish make it ideal for repetitive use
  • Ships via FedEx or UPS – Once assembled, simply bolts to existing floor or concrete
  • Lock-Out Standard On All Gates – Each model can be locked to prevent unauthorized access
  • Optional Toeboard – Available for ESG-60-PCY, ESG-96-PCY and ESGDBL-120-PCY models; an optional toeboard (sold separately) helps to increase edge protection from falling objects
  • Optional Electric Operator Kit – an Electric Operator Kit (sold separately) is an optional add-on feature compatible with any EdgeSafe® Smart Gate model. It allows the gate to be easily opened and closed with the simple push of a button. Best of all, it adds an extra layer of protection when used on mezzanines and helps alleviate stress on personnel when utilized in high-use applications.
